Guide for replacing batteries on old E130 Lifter

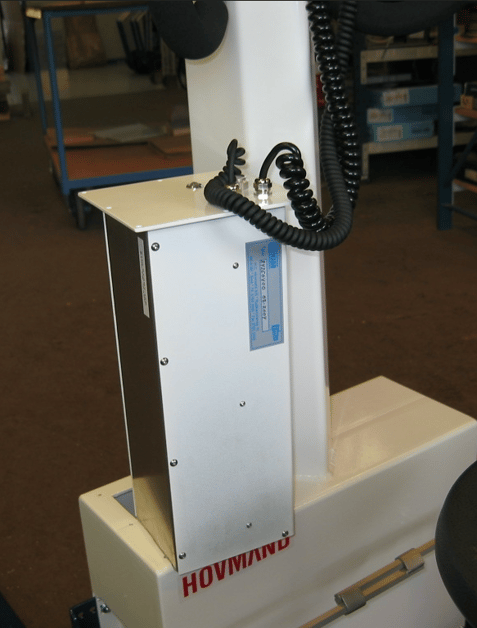

Take off the 8 screws (Torx 20) and Lift the control box up gently.
Cables are connected at the bottom right side. Control box shall be tipped a little to
get free.
Take off the 8 screws (Torx 20) and Lift the control box up gently.
Cables are connected at the bottom right side. Control box shall be tipped a little to
get free.
